Powerful Cooling Systems

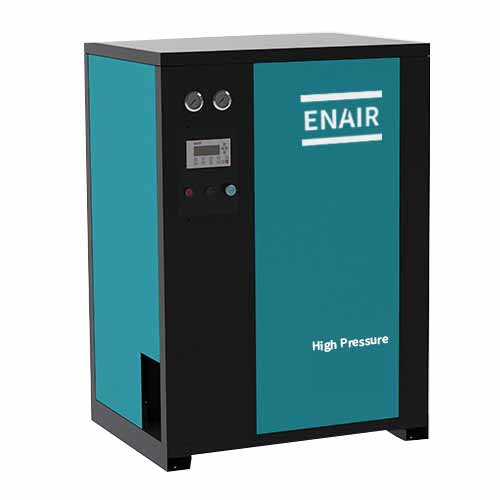

High Pressure air refrigeration dryer series units are with feature powerful cooling systems. Adopted high quality refrigerant compressor, generously-dimensioned heat exchanger surfaces, as well as smart designed cooling air flow. This combination ensures dependable operation even at high temperatures and guarantees stable pressure dew points at all times.
Flow Optimized Piping
The smaller the pressure differential within a dryer, the more efficient its performance. All HP dryers operate with exceptionally low pressure differential values thanks to quality, flow optimized stainless steel piping.
High Efficient Drain - High pressure Type
The 40bar HP Series dryer is equipped with a high pressure DRAIN ensures even more efficient condensate removal without any pressure loss and also saves energy. The electronic condensate drain is optional for the 50 bar version.
Technical Specification
| Model | Air Connection | Capacity m³/min | Power Supply V/Ph/Hz | Absorbed Power (kW) | Dimension mm | Weight (kg) | |||
| m³/min | CFM | L | W | H | |||||
| ENLF-12-HP | Rc1/2" | 1.2 | 42 | 230/1/50 | 0.26 | 600 | 310 | 500 | 35 |
| ENLF-15-HP | Rc1/2" | 1.5 | 53 | 230/1/50 | 0.28 | 600 | 310 | 500 | 35 |
| ENLF-18-HP | Rc1/2" | 1.8 | 64 | 230/1/50 | 0.3 | 600 | 310 | 500 | 35 |
| ENLF-24-HP | Rc3/4" | 2.4 | 85 | 230/1/50 | 0.46 | 750 | 360 | 550 | 50 |
| ENLF-30-HP | Rc3/4" | 3 | 106 | 230/1/50 | 0.5 | 750 | 360 | 550 | 50 |
| ENLF-36-HP | Rc3/4" | 3.6 | 127 | 230/1/50 | 0.53 | 750 | 360 | 550 | 55 |
| ENLF-40-HP | Rc3/4" | 4 | 141 | 230/1/50 | 0.55 | 750 | 360 | 550 | 55 |
| ENLF-60-HP | Rc1-1/4" | 6 | 212 | 230/1/50 | 0.8 | 750 | 550 | 880 | 80 |
| ENLF-80-HP | Rc1-1/4" | 8 | 282 | 230/1/50 | 0.85 | 750 | 550 | 880 | 80 |
| ENLF-90-HP | Rc1-1/4" | 9 | 318 | 230/1/50 | 0.9 | 750 | 550 | 880 | 80 |
| ENLF-100-HP | Rc1-1/4" | 10 | 353 | 230/1/50 | 1.1 | 750 | 550 | 880 | 80 |
| ENLF-120-HP | Rc1-1/4" | 12 | 424 | 230/1/50 | 1.22 | 750 | 550 | 880 | 80 |
| ENLF-150-HP | Rc1-1/4" | 15 | 530 | 230/1/50 | 2.1 | 1100 | 860 | 1200 | 150 |
| ENLF-200-HP | Rc1-1/4" | 20 | 706 | 230/1/50 | 2.3 | 1100 | 860 | 1200 | 150 |
| ENLF-250-HP | Rc2-1/2" | 25 | 883 | 400/3/50 | 2.8 | 1100 | 900 | 1550 | 270 |
| ENLF-300-HP | Rc2-1/2" | 30 | 1059 | 400/3/50 | 2.9 | 1100 | 900 | 1550 | 270 |
| ENLF-350-HP | Rc2-1/2" | 35 | 1236 | 400/3/50 | 3.1 | 1100 | 900 | 1550 | 300 |
| ENLF-400-HP | Rc2-1/2" | 40 | 1412 | 400/3/50 | 4.2 | 1100 | 900 | 1550 | 350 |
| ENLF-500-HP | Rc2-1/2" | 50 | 1766 | 400/3/50 | 4.56 | 1100 | 900 | 1550 | 470 |
| ENLF-600-HP | DN80 | 60 | 2119 | 400/3/50 | 5.6 | 1450 | 1130 | 1650 | 550 |
| ENLF-700-HP | DN80 | 70 | 2472 | 400/3/50 | 5.8 | 1450 | 1130 | 1650 | 570 |
| ENLF-800-HP | DN80 | 80 | 2825 | 400/3/50 | 5.94 | 1450 | 1130 | 1650 | 600 |
